Almemo 2470

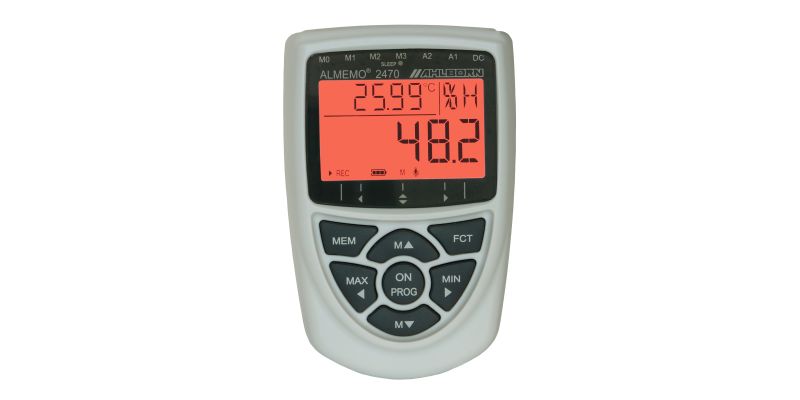

Ahlborn Almemo 2470 universeel meetinstrument datalogger.

Ahlborn Almemo MA 2470-2 professioneel meetinstrument voorzien van 2 Almemo ingangen. als optie met ingebouwde datalogger.

Grafische kleuren display met achtergrond verlichting.

  • Ingang voor 1 of 2 Almemo ingangen.
  • Delta Sigma 24 bit resolutie low power, 10 metingen per seconde.
  • 4 1/2 digit uitlezing. kleuren display met dubbele uitlezing
  • optie Intern geheugen voor 100.000 meetwaarden uit te breiden met SD-kaart.
  • Meer dan 65 standaard meetbereiken.
  • Automatische sensorherkenning.
  • Voeding d.m.v. 3x 1,5 V batterij.
  • Het model Almemo MA2470 -2S in voorzien van NiMH batterijen en lader.
  • Stevige ABS behuizing.


Download Almemo 2470 PDF Datasheet.


Technical data and functions

  • new Segmented color display with bright, white illumination
    Clear and easy-to-understand display of programming and measured values in 5 different colors and alarm display on a red background
  • new In the event of a limit value being overshot / undershot various freely configurable alarm messages are available, namely acoustic signal, visual LED signal, alarm display on a red background.
  • new With the 2470-1S /-2S these alarm messages are also configurable for long-term recording; in sleep mode the messages remain active and the most recent measured value is displayed continuously.
  • Good measuring accuracy, measuring rate up to 10 measuring operations per second (mops)
  • More than 65 standard measuring ranges
  • Support for ALMEMO® plugs with multi-point adjustment, special linearization, and special measuring ranges
  • Easy and convenient to operate by means of 7 keys, with configurable locking for keys and functions
  • Measuring functions : Maximum and minimum values, measured value smoothing, zero-setting, sensor adjustment
  • Programming functions : Limit values, sensor correction with base value and factor
  • All ALMEMO® functions programmable via interface
  • Modern, compact housing (IP54 option)
