Huber HM35

Artikel Nr. HM35

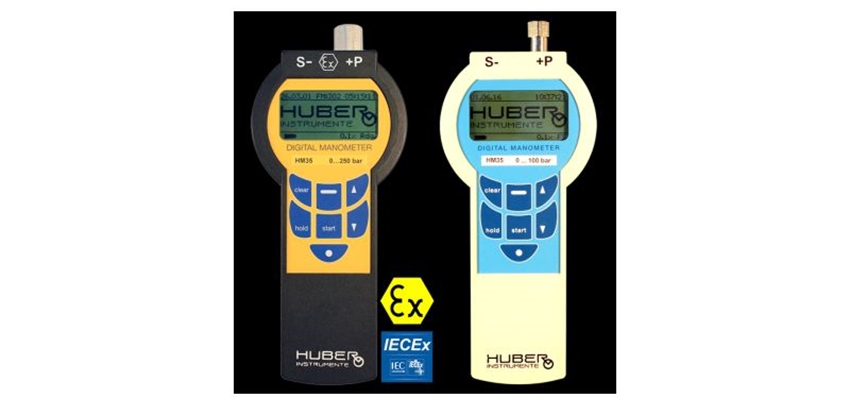

 Huber HM35 en HM35 Ex digitale drukverschil manometer

  • Meetbereiken vanaf 25 mbar tot 250 bar
  • Keuze uit diverse onnauwkeurigheden 0,2 / 0,1 en 0,05%
  • Leverbaar voor drukverschil, absoluut of overdruk.
  • Diverse engineering eenheden.
  • Groot intern geheugen 10.000 meetpunten.
  • IR interface voor datacommunicatie met PC
  • Leverbaar in Intrinsiek veilige uitvoering Atex Ex II 2G Eex ia IIC T4



The most impressive feature of the HM35 and HM35 EX manometer is the versatile range of applications.
It allows measurements in the area of relative, differential or absolute pressure.
The EX-version meets all requirements for applications in hazardous areas (EEx ia IIC T4).
Functions such as pressure change rate, MIN/MAX and average value are available.
In addition the HM35 / HM35 EX can also be individually configured for various requirements.
A large, well readable graphics display, its handy size, a real time clock including date,
the background illumination, the data memory for 10’000 measurements…
Via the infrared interface (IR), all data can be transferred directly to any PC.
A communication software for Windows is also available.
22 selectable measurement units complete off the specification of this precise manometer.

Download Huber HM35  drukverschilmanometer datasheet.
