Montwill M1 digitale paneelmeter

Artikel nr.: M1 proces display

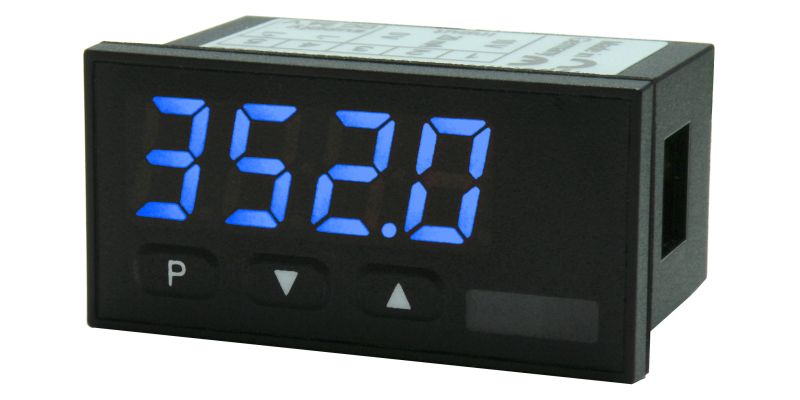

Montwill M1 digitale display in 4 digit uitvoering.

Meet gelijkspanning, gelijkstroom en diverse proces signalen.

0/4-20 mA / Span -22...24 mA
0-10 VDC / Span -12...12 VDC

De paneelmeter heeft heldere 10 mm hoge cijfers in rood, groen, geel of blauw.

Leverbaar in 96x48 , 96x24 , 72x36 en 48x25 mm uitvoering.

38 mm ondiepe behuizing.

IP65 uitvoering.

Programmeerbaar d.m.v. toetsen op de voorkant van de paneelmeter of via software.

Tare-funktie.

Min/max functie.

Blokkeren d.m.v toegangs-code.



Housing 48 x 24 mm
Display 4-digit
10 mm digit height
Colour: red
Range displayed -1999 to 9999
Operation front panel keyboard protection class IP65
Input Voltage 0-10VDC
Current 0/4-20mA
Pt100 2-/3-wire
Pt1000 2-wire
Thermocouple type L, J, K, B, S, N, E, R, T
Frequency
Rotation speed
Counter
Pulse input: TTL, HTL/PNP, NPN, Namur
Analogue Output -
Switch point 2 semiconductor switchpoint
Interface -
Power supply 9-28 VDC galv. not isolated
Sensor supply -
Software properties
  • min/max-value recording
  • 5 adjustable supporting points
  • display flashing at threshold value exceedance/undercut
  • Tara function
  • two semiconductor switchpoints
  • programming interlock via access code



Housing 96 x 48 mm
Display 5-digit
14 mm digit height
Colour: red
Range displayed -9999...99999
Operation front panel keyboard protection class IP54
Input Voltage 0-10VDC
Current 0/4-20mA
Shunt 15, 35, 75, 150, 300, 500, 1250, 2500mV
Pt100 2-/3-/4-wire -200,0...850,0°C
Thermocouple type L, J, K, B, S, N, E, R, T
Resistance 100Ohm, 1kOhm, 10 kOhm
Digital input: <2.4V OFF, >10V ON, max. 30 VDC
Analogue Output 0-20 mA Burden ≤500Ohm 12Bit
4-20 mA Burden ≤500Ohm 12Bit
0-10 VDC Burden ≥100kOhm 12Bit
Switch point 2 or 4 relays (change-over contacts)
250 V / 5 AAC, 30 V / 5 ADC
Interface RS232 or RS485 galvanic isolated
Power supply 10-40 VDC / 18-30 VAC 50/60Hz
100-240 VAC 50/60 Hz / DC +/- 10%
Sensor supply 24 VDC / 50 mA
10 VDC / 20 mA
Software properties
  • min/max-memory with adjustable permanent display
  • 30 additional adjustable supporting points
  • display flashing at threshold value exceedance/undercut
  • volume metering (Totaliser)
  • sliding averaging
  • zero-point slowdown
  • adjustable display brightnes
  • selectable display mode
  • hold-/tara function
  • flexible alarm system with adjustable delay times
  • programming interlock via access code
