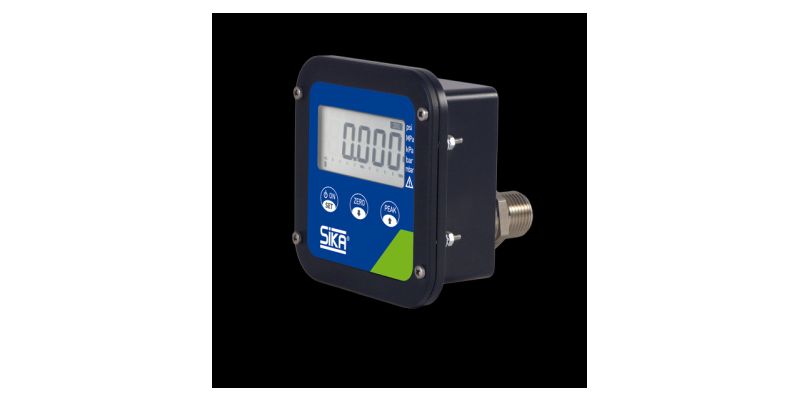

Sika P digitale inbouw manometer

De Sika P serie is leverbaar in een paneel inbouw uitvoering met een meetbereik vanaf 0 tot 500 mbar tot maximaal 2500 bar. De manometer is leverbaar in diverse nauwkeurigheden. Daarnaast ook als standaard meter met G 1/2 onder aansluiting leverbaar. Nauwkeurigheid: 4 digit (0.5 % / 0.2 %), 5 digit (0.05 % / 0.025 %). Min/max funktie. RS232 interface als optie leverbaar.

Beschikbare in de volgende meetbereiken: 0...100 mbar 0...250 mbar 0...500 mbar -1...1 bar -1...2.5 bar -1...5 bar -1...10 bar -1...20 bar -1...40 bar -1...60 bar 0...100 bar 0...250 bar 0...350 bar 0...500 bar 0...700 bar  0...1000 bar 0...1500 bar 0...2000 bar 0...2500 bar.



Digital pressure gauges are particularly suitable for both stationary and mobile measurement and display of pressure. They can be used as reference pressure gauges to simplify the checking, adjustment and calibration of other pressure measurement devices directly on site.

Example applications

  • Continuous or temporary checking of a wide variety of system pressures
  • Air density measurement in building shells for the detection and elimination of problem areas and avoiding structural damage
  • Monitoring the degree of soiling of filter units in ventilation or air conditioning systems
  • Recording pressure drops for the determination of leakage rates in leak tests
  • Measurement of barometric air pressure for the determination of weather conditions
  • Reference pressure gauge for calibration tasks
