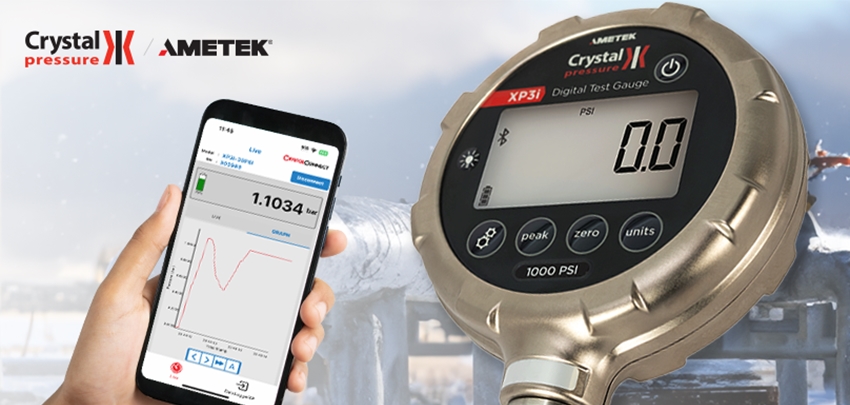

Ametek Crystal XP3i Digitale testmanometer

De Crystal XP3i ATEX digitale manometer is de vernieuwde uitvoering van onze alom bekende XP2i digitale testmanometer met een betere nauwkeurigheid, Bluetooth, USB C, groter gecompenseerd temperatuurbereik en meer intern geheugen.

Bereik vanaf -1 tot 1000 bar.

Leverbaar in overdruk of absolute druk.

Temperatuur gecompenseerd tussen -20 en +50°C.

Nauwkeurigheid: 0 tot 40% van het meetbereik 0,02% fs en boven 40%  0,05% van de gemeten waarde.

Communicatie USB C of Bluetooth.

App voor mobile telefoon.

Gratis CrystalControlWeb Cloud software.

Duidelijke grote display met verbeterde achtergrond verlichting.

Intrinsiek veilige Atex uitvoering.

IP67 behuizing.

Marine grade behuizing (MIL-STD 810)

Als optie is een dual line versie beschikbaar en datalogger optie met 200 miljoen datapunten.

Werkt ongeveer 1500 uur op 3 AA batterijen.

Standaard voorzien van ISO17025 kalibratie certificaat.

Beschikbare bereiken:

1 bar / 1,1 bar absolute / 2 bar / 7 bar /20 bar / 30 bar / 70 bar / 140 bar / 200 bar / 300 bar /

700 bar en 1000 bar

Ultra rugged, intrinsically safe, digital test gauge with “0.05% of reading”, “0.02% of full scale”, or “0.05% of full scale” accuracy levels. Carry a single XP3i digital pressure gauge to cover a wide pressure range and replace multiple “of scale” gauges. If a recording of a pressure test is required, add the DataLoggerXP upgrade to open a wide range of features and functions.

Now with USB-C and Bluetooth connections, a free mobile app, and a cloud software service, you can share stored files with any colleague with internet access.

• Ranges up to 15 000 psi
• Marine grade enclosure resists corrosion (MIL-STD 810)
• Accuracy not affected from -20 to 50°C (increased range from the XP2i)
• Replaces 5 or more test gauges
• Fast pressure safety valve (PSV) mode
• Easy to use – No Menu. No Manual? No Problem!
• Includes calibration reminders and alerts - See our digital pressure gauge application note for details

With a Bluetooth connection, you can:

• Connect in a hazardous environment while retaining intrinsically safe ratings
• Mount the XP3i in hard-to-reach locations and connect from a safe area
• Avoid inclement weather by connecting to the XP3i from a climate-controlled office or vehicle
• Forgot your communication cable? Are drivers not installed? Is the cable damaged? All of these problems go away with a Bluetooth connection

With the optional DataLoggerXP upgrade

• Record over 200 million data points
• Over an entire year of continuous recording time
• Start and stop logging runs from your phone or the gauge
• Download data using a USB connection and a computer or through Bluetooth and the mobile app

With the new CrystalControlWeb cloud software (Free)

• Upload stored data from your computer
• Upload stored data from a file – wirelessly downloaded using your app
• Share stored data with anybody in your organization
• Grant user access to your organization through a license key
• Graph your stored data
• Customized graph details like line color, axis minimum and maximums, and run and test names
• Configure the settings on your XP3i
• Download data to spreadsheets or secure, tamper-proof pdf files
