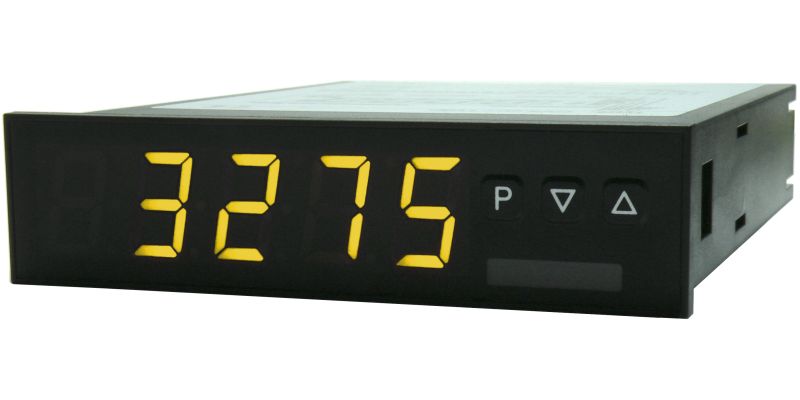

Montwill M3 digitale paneelmeter
| Housing | 96 x 24 mm |
| Display | 5-digit 14 mm digit height Colour: red, green, orange or blue display |
| Range displayed | -19999 to 99999 |
| Operation | front panel keyboard protection class IP65 |
| Input |
AC voltage / AC current true RMS Pt100 3-/4-wire Thermo couple Frequenty 0/4-20 mA / Span -22…24 mA |
| Analogue Output |
0/4-20 mA / 0-10 VDC / 16 Bit |
| Switch point | 1 or 2 change-over relays 250 VAC / 2 AAC ; 30 VDC / 2 ADC |
| Interface | RS232 or RS485 galvanic isolated Alternatively analog output |
| Power supply | 10-40 VDC / 18-30 VAC 50/60Hz 100-240 VAC 50/60 Hz / DC +/- 10% |
| Sensor supply | – |
| Software properties |
|
