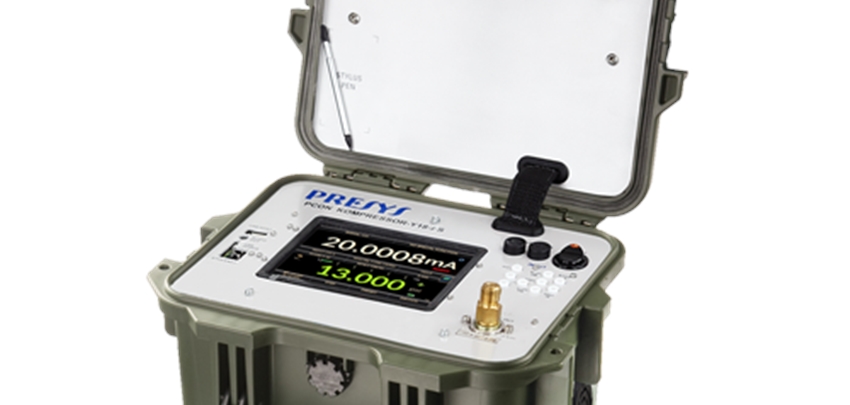

Presys Instruments PCON-Y18 Automatische Drukkalibrator
De Presys PCON-Y18 FS is een complete oplossing voor het het snel en nauwkeurig kalibreren van druk gerelateerde instrumenten in het veld. De PCON-Y18 FS is een volledig automatische documenterende drukkalibrator die zelf de benodigde druk genereerd tot max 70 bar (e.a. afhankelijk van de uitvoering) en de elektrische meet. Kalibratierapporten kunnen direct vanuit de kalibrator worden gegenereerd zonder dat hiervoor een computer of extra software nodig is. De opgeslagen data is sabotage bestendig in overeenstemming met 21 CFR Part 11.
De kalibrator heeft de volgende standaard functies:
- Ingebouwde drukcompressor voor over en onderdruk.
- Control Stability ± 0.002 % FS van het geselecteerde bereik.
- 24 V Transmitter voeding.
- -1 tot 24 mA ingang 0.01%fs nauwkeurigheid.
- Drukschakelaar testfunctie.
- Lektest functie.
- Basic Hart Communicator voor basis functies.
De Presys PCON-Y18 FS is leverbaar in een aantal verschillende meetbereiken:
| Model | Range low | Range High | Accuracy |
| 3-C-5-G | -0.9 to 1 bar | 0 to 7 bar | ± 0.012 % FS of selected range |
| 4-C-5-G | -0.9 to 2.5 bar | 0 to 7 bar | ± 0.012 % FS of selected range |
| 3-C-6-G | -0.9 to 1 bar | 0 to 25 bar | ± 0.012 % FS of selected range |
| 4-C-6-G | -0.9 to 2.5 bar | 0 to 25 bar | ± 0.012 % FS of selected range |
| 5-C-6-G | -0.9 to 7 bar | 0 to 25 bar | ± 0.012 % FS of selected range |
| 3-C-7-G | -0.9 to 1 bar | 0 to 40 bar | ± 0.012 % FS of selected range |
| 4-C-7-G | -0.9 to 2.5 bar | 0 to 40 bar | ± 0.012 % FS of selected range |
| 5-C-7-G | -0.9 to 7 bar | 0 to 40 bar | ± 0.012 % FS of selected range |
| 3-C-8-G | -0.9 to 1 bar | 0 to 70 bar | ± 0.012 % FS of selected range |
| 4-C-8-G | -0.9 to 2.5 bar | 0 to 70 bar | ± 0.012 % FS of selected range |
| 5-C-8-G | -0.9 to 7 bar | 0 to 70 bar | ± 0.012 % FS of selected range |
| 6-C-8-G | -0.9 to 25 bar | 0 to 70 bar | ± 0.012 % FS of selected range |
Opties
BR - Barometric Reference to measure and emulate absolute pressure Accuracy 0.16 mmHg / 0.2 mbar
HR - Full Hart communicatie
English
The PCON-Y18 FS provides a complete solution for the test and calibration of your pressure.
No extra software or computer is needed to generate the calibration test report on the fly and the data are tamper proofed in accordance with 21 CFR Part 11.
PCON-Y18 FS is a real documenting automated calibrator to calibrate more efficiently your instruments in the industrial areas that will become quickly an indispensable tool in your day to day work allowing real gains of productivity.
- 5.7" Touch Screen Color Display. Dual Core 1 GHz processor and Flash memory of 16 GB.
- Easy Labview interface with the WebApi Commands.
- Ethernet, Wi-Fi via USB/Ethernet router adapter, Serial USB with SCPI protocol.
- Integrated WebServer, client-server technology to pick-up tasks on remote server.
- Host/Device USB port.
- HART® Communication standard.
- Pressure switch automatic testing.
- Input Current: -1 to 24.5 mA, ± 0.01% FS.
- Transmitter Power Supply: 24 Vdc regulated.
- Leak test.
- Temperature compensated accuracy from 0°C to 50°C.
- User selectable pressure unit: Pa, hPa, kPa, MPa, bar, mbar, psi, mmHg@0°C,cmHg@0°C, mHg@0°C, inHg@0°C, inH₂O@4°C, mmH₂O@4°C, cmH₂O@4°C, mH₂O@4°C, mmH₂O@20°C, cmH₂O@20°C, mH₂O@20°C, kg/m², kg/cm², mtorr, torr, atm, lb/ft².
- Easy Labview interface with the WebApi Commands.
- Control speed: 20 s (for 10 % FS pressure increase in a 50 ml test volume).
- Integrated electric pump for positive and negative pressure generation.
Download Presys PCON-Y18 datasheet
